I. Features and Advantages of the Hotel Room Intelligent Control System

1. Pure glass screen, showcasing luxury

The front surface of the touch screen is made of a complete pure tempered glass screen, crystal clear, elegant and refined, highlighting the luxury of the hotel.

2. Capacitive touch technology, enjoy the ease of touch

It adopts capacitive touch technology, allowing for easy fingertip operation. Compared to traditional resistive touch, it offers higher reliability and longer service life.

3. CAN bus network control: Simple installation, convenient debugging and maintenance, and significant cost savings

The strong current wiring in the guest room is laid out according to the traditional strong current mode. The weak current cables only need to be horizontally connected in series with each touch switch using a four-core bus. The alarm signal is connected to the nearby touch switch. The construction pipeline and labor costs are significantly reduced. All the installation and debugging work areas are on the switch horizontal line 1.4 meters above the ground, requiring lower technical requirements for on-site engineers. This greatly reduces installation costs, debugging costs, and future maintenance costs.

4. A wise choice for hotel upgrades and renovations to add a room control system

During hotel renovations, the strong current system does not require any pipeline modifications. Simply replace the original switch panel with a touch switch, and then connect it horizontally to complete the renovation. This is currently the most simple guest control system on the market that can be used for hotel renovations and enhance the hotel's grade.

5. Perfect fusion of intelligent and energy-saving air conditioning management

According to the rental status and card insertion status of the hotel room, the air conditioner can automatically switch between normal, circulation, strong, forced, and sleep modes, ensuring that guests receive humanized intelligent service while striving to achieve the hotel's green energy-saving goals.

In forced air conditioning mode, the hotel can set the minimum default operating temperature and intelligent temperature adjustment time frequency for the air conditioner thermostat. The thermostat can intelligently and humanely adjust the temperature curve, and finally operate at the default temperature to achieve intelligent energy saving.

The air conditioning sleep mode protects the health of guests while achieving energy saving.

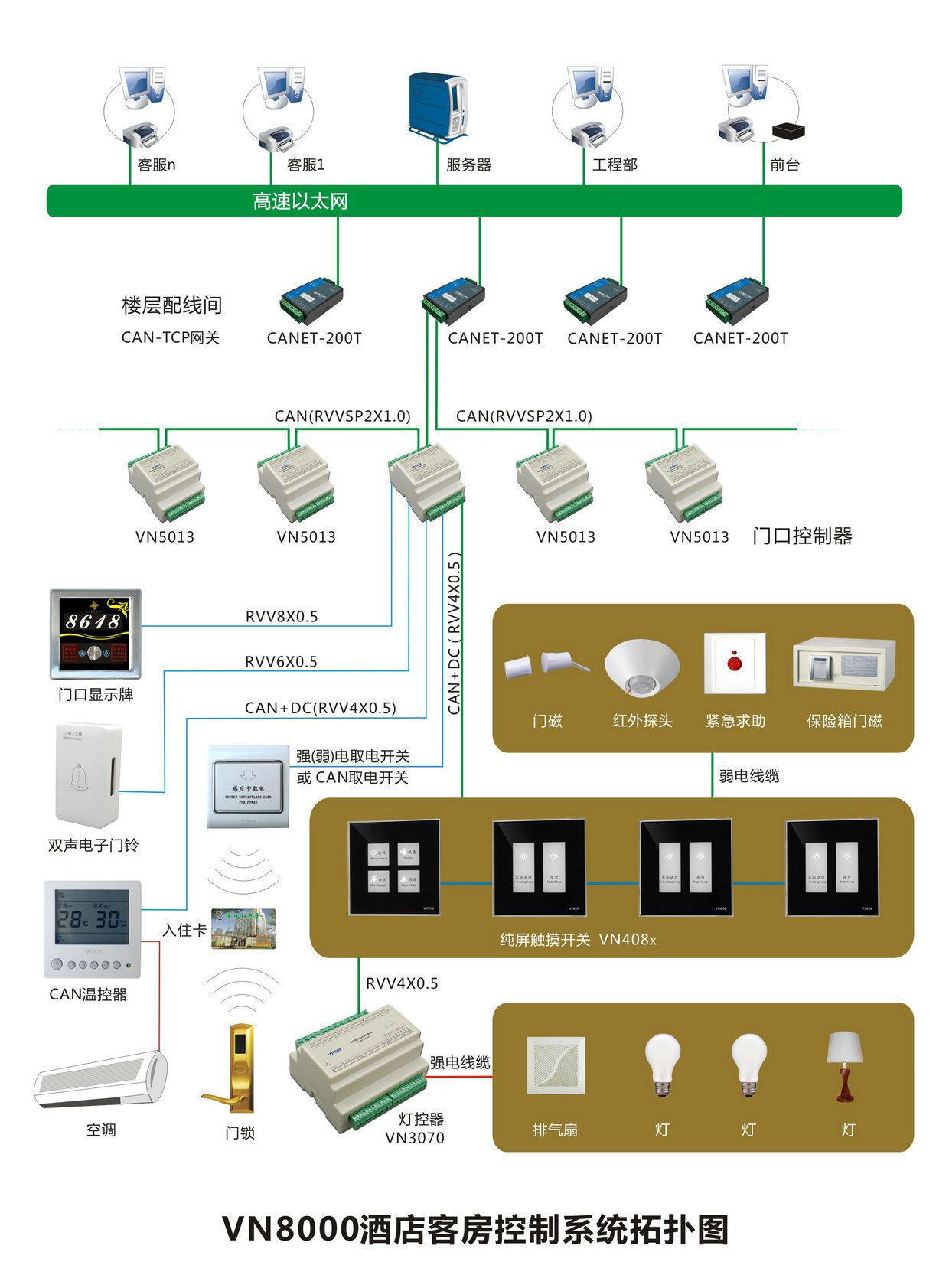

II. Composition and Topology Diagram of the VN8000 Hotel Room Intelligent Control System

The VN8000 system consists of hotel room intelligent control management system software, CAN door controller, CAN pure screen touch switch, CAN air conditioner thermostat, strong current power switch/CAN power switch, etc.; auxiliary equipment includes emergency call button, door sensor, infrared detector, safe, hotel door lock; CAN networking equipment includes CAN network adapter, CAN floor hub, etc.

III. Introduction to the Functions of the Vinin Hotel Room Intelligent Control System

1. Lighting control

◇ When the room is unoccupied, automatically turn on the exhaust fan for 5 minutes every hour to keep the room air fresh;

◇ When guests enter the bathroom, automatically turn on the exhaust fan and bathroom lights. After the guests leave, automatically turn off with a delay;

◇ Sleep master switch, can turn off the room lights with one key, only the exhaust fan and night light can be selected by the guests whether to turn off.

2. Service request

Check-out and service requests can be uploaded to the customer service center monitoring interface for timely hotel response and improved service efficiency.

3. Large screen 5-in-1 door display

◇ Large screen 5-in-1 door display: room number, cleaning, do not disturb, wait, doorbell button;

◇ When the do not disturb indicator light on the door indicator is on, the doorbell is disabled;

◇ When the doorbell is pressed for more than 5 seconds, if the "Do Not Disturb" indicator light flashes 3 times, it indicates that someone is in the room. If the "Cleaning" indicator light flashes 3 times, it indicates that no one is in the room, making it easier for the service staff to choose whether to enter for cleaning, avoiding the need to knock on the door to disturb the guests.

4. Dual-tone electronic doorbell: When inserting the card, it says "Hello, welcome to xxx hotel". When pressing the doorbell, it says "Ding dong, ding dong".

5. Alarm monitoring: Upload room alarm signals to the customer service center monitoring interface at any time, including door sensors, safe door sensors, and emergency calls.

6. Intelligent IC card identification: The power switch can identify the identity code in the radio frequency card and upload it to the customer service center monitoring interface in time.

7. Intelligent energy-saving air conditioning

According to the rental status and card insertion status of the hotel room, the air conditioner can automatically switch between normal, circulation, strong, forced, and sleep modes, ensuring that guests receive humanized intelligent service while striving to achieve the hotel's green energy-saving goals.

◇ Circulation ventilation mode: Automatically turn on the exhaust fan for ventilation every hour while the room is unoccupied, and turn on the air conditioning ventilation at the same time;

◇ Strong air conditioning mode: When the front desk opens a room, the room air conditioner immediately turns on to the strong mode, allowing the room to quickly reach a comfortable temperature;

◇ Air conditioning sleep mode: protects the health of guests while achieving energy saving.

◇ Forced air conditioning mode: The hotel can set the minimum default operating temperature and intelligent temperature adjustment time frequency for the air conditioner thermostat. The thermostat can intelligently and humanely adjust the temperature curve, and finally operate at the default temperature to achieve intelligent energy saving.

◇ When the rented room is unoccupied, the air conditioner can maintain a constant temperature mode or circulation mode according to the hotel's settings:

◇ Air conditioning circulation mode: When the rented room is unoccupied, the air conditioner automatically turns on for 5 minutes every hour to maintain the room air and appropriate temperature;

◇ Air conditioning constant temperature mode: When the rented VIP room is unoccupied, the air conditioner automatically maintains the room temperature within 2 degrees of deviation.

8. Compatible expansion functions

In order to meet the requirements of hotel owners for the consistency of the brand appearance of power switches and switch panels, the system provides a variety of compatible interfaces:

◇ The controller provides a 485 bus port, compatible with other manufacturers' 485 networked power switches;

◇ When RF card identification is not required, the system also provides an interface compatible with power switches from any other manufacturer.

IV. List of Hotel Standard Room Internal Guest Control Equipment
