I. VN6000LED Features and Advantages of the VN6000LED Full Dimming Series Hotel Room Control System

1. Main System Equipment Components

The VN6000LED full dimming series hotel room control system includes: door controller, LED dimming controller, power switch, CAN temperature controller, DIN control power supply, lighting power supply, etc.

2. Three-Level Communication Architecture of the System

The main communication of the VN6000LED full dimming series hotel room control system is the TCP/IP communication protocol;

Floor communication and room communication both use the CAN-Bus protocol;

The system can be networked throughout the hotel; it can also operate independently in a single room without being networked throughout the hotel.

3. Modular controller, distributed control can be customized according to the room type, reducing costs;

The controller adopts a modular design and can be distributed according to the hotel room type. One or more low-voltage control boxes (RCU) can be designed, and the devices in each RCU can be reasonably configured according to the I/O ports of this control area, which can reduce equipment costs.

4. The controllers in the RCU are plug-in terminal blocks, easy to install and maintain: a module can be replaced within 5 minutes;

5. LED green lighting, reducing hotel operating costs;

Currently, LED lights are widely used in hotel rooms, and their energy-saving effect has been unanimously recognized by users. The full LED dimming system can further improve energy saving!

LED lights at around 70% brightness are more suitable for human eyes. Full LED dimming can fully meet the guests' requirements for the brightness and darkness of various LED lights, and can also save more energy!

6. All LED lights use soft start and soft shutdown to extend the service life of LED lights;

7. All room LED lights use dimming control, and the scene functions can be richer and more user-friendly;

8. Innovative Switch Panel Design

Due to the characteristics of the full LED dimming system, and considering that hotel guests are not familiar with the room switches, the traditional one-switch-one-light control mode can be broken through. It is recommended to use scene switches, which can reduce the number of switch panels and make the switch functions simple and intuitive.

The panoramic up and down adjustment buttons can adjust the overall dimming of the room lights. Guests can quickly achieve their desired overall room lighting effect by selecting a scene and then performing panoramic dimming.

9. Centralized DC low-voltage direct current power supply, improving system stability, fundamentally ensuring the safety of lighting lines;

The power supply of LED lights has been changed from the past AC220V power supply, with each LED light equipped with a driver power supply; now it is changed to centralized DC low-voltage direct current power supply by the RCU control box, and the LED lights do not need to be equipped with a separate driver power supply. This makes it easy to achieve high reliability, long life, and high quality of the power supply module, and can make the lighting and system efficiency very high, reducing the overall system cost.

Separating the driver power supply from the LED luminaire reduces the heat generated by the luminaire, and greatly reduces the ambient temperature of the driver power supply itself. This makes the reliability of the luminaire very high, and the service life can be very long. There is no power factor problem, so the power supply line loss is reduced.

The DC voltage is less than 30V, which is a safe voltage for the human body, thus greatly improving the safety of the lighting lines.

If the positive and negative poles of the DC load are short-circuited, single-channel protection can be performed without affecting the normal operation of other loads. Avoid various safety hazards caused by short circuits of high-power loads in the past.

10. Simple wiring, convenient construction;

Clear and concise wiring architecture: switches and panels and alarms are all RVV0.5 low-voltage cables, and the door display is RVV8*0.5 low-voltage cable, concentrated to the RCU box;

Each LED lighting load has a BRV2*1.0 cable, concentrated to the RCU box, no need to pull BVZR2.5 high-voltage cables, saving a lot of high-voltage cable costs;

During wiring, the low-voltage ports and lighting ports are basically one-to-one correspondence, and the installation is very fast.

11. With a built-in test port, it can be compatible with and identify the power switches of switch manufacturers to ensure the unified style of guest room panels;

The guest room controller has a built-in test port that can identify the high (low) voltage power switches of switch manufacturers to ensure the unified style of hotel guest room switch panels.

12. Perfect integration of intelligent and energy-saving air conditioning management

According to the rental status and card insertion status of the hotel guest rooms, the air conditioner can automatically switch between normal, circulation, strong, energy-saving, and sleep modes, ensuring that guests receive user-friendly intelligent services while striving to achieve the hotel's green energy-saving goals.

In the air conditioning energy-saving mode, the hotel can set the minimum default operating temperature and intelligent temperature adjustment time frequency for the air conditioning temperature controller. The temperature controller can intelligently and humanely adjust the temperature curve, and finally operate at the default temperature to achieve intelligent energy saving.

The air conditioning sleep mode can protect the health of guests while achieving energy saving.

13. Android tablet computers can monitor the lights, dimming, scenes, air conditioning, curtains, and doorplate services in the guest room

14. A true network version of the background control software, each floor workstation can be managed in zones;

The background control network is a TCP/IP local area network, and the control units include servers and floor workstations.

Each floor workstation can manage the status of the guest rooms on the floor it is responsible for, and monitor in real time the card insertion status, alarms, service requests, and air conditioning operation status of each room.

II. VN6000 LED Full Dimming Series Hotel Room Intelligent Control System Function Introduction

1. Full LED dimming control, rich scene presentation, full scene dimming

2. Lighting control functions

A. When the room is unoccupied, the exhaust fan automatically turns on for 5 minutes every hour to keep the air fresh;

B. When a guest enters the room and pushes the door without inserting a card, the corridor light immediately turns on, making it convenient for guests to insert their card at night;

C. When a guest inserts a card, they can activate preset scenes: lights, curtains;

D. When a guest enters the bathroom, the exhaust fan and bathroom light automatically turn on, and they turn off automatically after a delay when the guest leaves;

E. Single-button dimming and scene functions can create various intimate lighting scene atmospheres for guests;

F. The overall up and down switches can adjust the overall room lighting, quickly meeting the guest's lighting brightness requirements.

G. The sleep master switch can turn off the room lights with one button, only keeping the exhaust fan and night light, which the guest can choose whether to turn off.

3. Service Request

Check-out and service requests can be uploaded to the customer service center monitoring interface, allowing the hotel to respond promptly and improve service efficiency.

4. 6-in-1 Door Sign

A. The door sign can display cleaning, do not disturb, wait, room number, and occupied/unoccupied status indicators, and simultaneously upload cleaning and do not disturb status to the room center monitoring interface;

B. When the do not disturb indicator light on the door sign is lit, the doorbell is disabled;

C. When a service staff member presses and holds the doorbell for more than 5 seconds, they can determine whether the room is occupied by the corresponding indicator light flashing, avoiding disturbing the guest.

5. Alarm Monitoring

The room's alarm signals are uploaded to the customer service center monitoring interface at any time, including emergency calls, door sensors, and safe door sensors.

6. Power Switch

The CAN power switch can identify the ID code in the radio frequency card and upload it to the customer service center monitoring interface in a timely manner.

The door controller also has built-in strong (weak) electricity test ports, which can compatibly identify the card insertion status of any manufacturer's power switch.

7. Intelligent Energy-Saving Air Conditioning

Based on the hotel room's rental status and card insertion status, the air conditioner can automatically switch between normal, circulation, strong, forced, and sleep modes, ensuring that guests receive user-friendly intelligent service while striving to achieve the hotel's green energy-saving goals.

A. Circulation ventilation mode: The exhaust fan automatically ventilates every hour when the room is available, and the air conditioner ventilation is also turned on;

B. Strong air conditioning mode: When the front desk opens a room, the room air conditioner immediately enters the strong mode, allowing the room to quickly reach a comfortable temperature;

C. Air conditioning sleep mode: This protects the guest's health while achieving energy-saving effects.

D. Air conditioning energy-saving mode: The hotel can set the lowest default operating temperature and temperature intelligent adjustment time frequency for the air conditioner thermostat, and the thermostat can intelligently and humanely adjust the temperature curve, finally operating at the default temperature to achieve both intelligent and energy-saving effects.

E. Air conditioning circulation mode: When the rented room is unoccupied, the air conditioner automatically turns on for 5 minutes every hour to maintain the room's air and appropriate temperature;

F. Air conditioning constant temperature mode: When a rented VIP room is unoccupied, the air conditioner automatically maintains the room temperature within 2 degrees of deviation.

8. An Android tablet can monitor the room's lights, dimming, scenes, air conditioning, curtains, and door sign services.

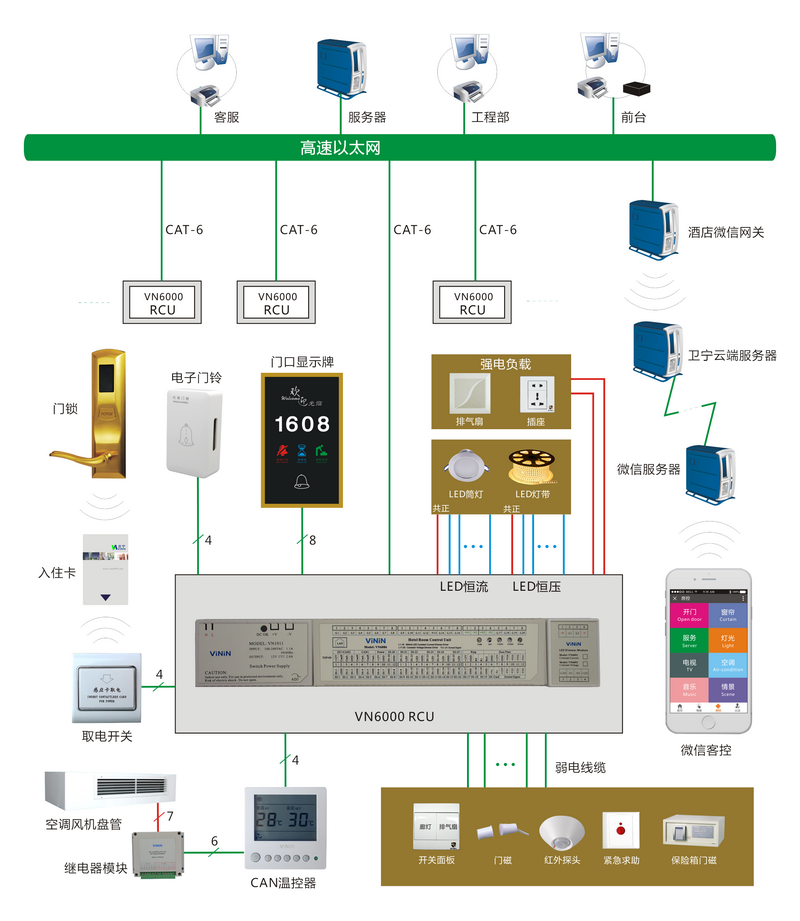

Three, VN6000 LED Topology Diagram of the Full Dimming Series Hotel Room Intelligent Control System

Four, VN6000LED List of Standard Room Internal Equipment for the Full Dimming Series Hotel Guest Control System
