I. Features and Advantages of the VN3000 Hotel Room Intelligent Control System

1. Main System Equipment Composition

The VN3000 Vinin hotel room control system room equipment includes main devices such as CAN room door controller, CAN room light controller, CAN power switch, CAN temperature controller, and relay module.

2. Two-level CAN bus architecture, suitable for various control modes including two-level networking, one-level networking, and non-networking

The VN3000 hotel guest control system uses CAN-Bus protocol for both backbone communication and secondary communication.

The system can be networked throughout the hotel; it can also be non-networked throughout the hotel, with each room operating independently.

3. Optional corridor and bedside distributed control, making pipeline construction and equipment installation extremely simple

Based on the characteristics of hotel room switch panels concentrated in two locations: bathroom entrance and bedside, corridor light controllers and bedside light controllers are separately designed for distributed control. This control mode can greatly reduce the amount of pipeline construction and significantly lower the construction and installation costs.

4. Standard rail-mounted installation mode, exquisite and lightweight; plug-in wiring terminals, convenient and fast

The innovative rail-mounted installation mode for guest control products allows for easy installation in traditional power distribution boxes, making construction and maintenance very convenient.

All products use plug-in wiring terminals, making installation easier and maintenance faster.

5. Built-in test port, compatible with power switches from various manufacturers, ensuring uniform style of room panels

The room controller has a built-in test port that can identify power switches from various switch manufacturers, ensuring a unified style of hotel room switch panels.

6. Perfect fusion of intelligent and energy-saving air conditioning management

Based on the room rental status and card insertion status, the air conditioner can automatically switch between normal, circulation, strong, energy-saving, and sleep modes, ensuring guests receive user-friendly intelligent service while achieving the hotel's green energy-saving goals.

In energy-saving mode, the hotel can set the minimum default operating temperature and intelligent temperature adjustment frequency for the air conditioner temperature controller. The temperature controller can intelligently and humanely adjust the temperature curve, ultimately operating at the default temperature to achieve intelligent energy saving.

The air conditioning sleep mode protects guests' health while achieving energy saving.

7. True network-based background control software, each floor workstation can manage zones

The background control network is a TCP/IP local area network, and the control units include servers and floor workstations.

Each floor workstation can manage the room status of its respective floor, and monitor in real-time the card insertion status, alarms, service requests, and air conditioning operation status of each room.

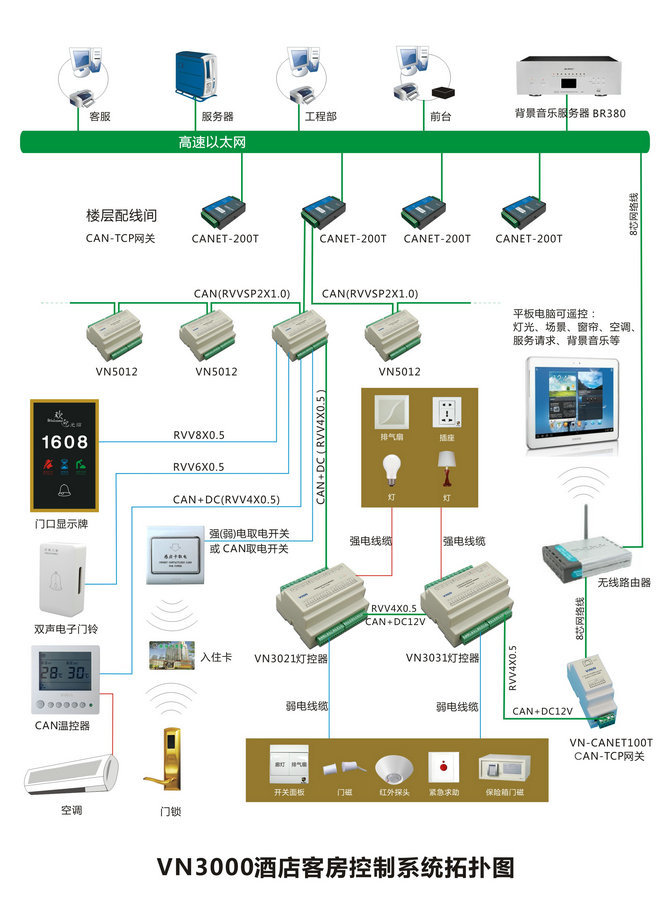

II. VN3000 Hotel Room Intelligent Control System Composition and Topology Diagram

VN3000 system components: Hotel room intelligent control management system software, CAN door controller, CAN corridor light controller, CAN bedside light controller, CAN air conditioning temperature controller, power-type power switch/CAN power switch, etc.; other equipment includes hotel door locks, dual-tone electronic doorbells, emergency call buttons, door sensors, infrared detectors, switch panels, safes, etc.; CAN networking equipment includes CAN network adapters, CAN floor hubs, etc.

III. VN3000 Vinin Hotel Room Intelligent Control System Function Introduction

1. Lighting Control

When the room is unoccupied, automatically turn on the exhaust fan for 5 minutes every hour to keep the room air fresh;

When a guest enters the bathroom, automatically turn on the exhaust fan and bathroom lights; after the guest leaves, automatically turn them off after a delay;

Sleep master switch, can turn off room lights with one button, only keeping the exhaust fan and night light, which the guest can choose whether to turn off.

2. Service Request

Check-out and service requests can be uploaded to the customer service center monitoring interface for timely response and improved service efficiency.

3. Large Screen 5-in-1 Door Display

Large screen 5-in-1 door display: room number, cleaning, do not disturb, wait, doorbell button;

When the "Do Not Disturb" indicator light on the door sign is on, the doorbell is disabled;

When the doorbell is pressed for more than 5 seconds, if the "Do Not Disturb" indicator light flashes 3 times, it indicates that someone is in the room; if the "Cleaning" indicator light flashes 3 times, it indicates that no one is in the room, allowing the service staff to choose whether to enter for cleaning, avoiding the need to knock and disturb the guest.

4. Alarm Monitoring

Upload room alarm signals to the customer service center monitoring interface in real time, including door sensors, safe door sensors, and emergency calls.

5. Power Switch

The CAN low-voltage power switch can identify the identity code in the radio frequency card and upload it to the customer service center monitoring interface in real time.

The controller has a built-in identification port that can identify power switches from various manufacturers.

6. Intelligent Energy-Saving Air Conditioning

Based on the hotel room's rental status and card insertion status, the air conditioner can automatically switch between normal, circulation, strong, forced, and sleep modes, ensuring guests receive user-friendly intelligent service while achieving the hotel's green energy-saving goals.

Circulation ventilation mode: automatically turn on the exhaust fan for ventilation every hour when the room is vacant, and turn on the air conditioner ventilation at the same time;

Air conditioning strong mode: when the front desk opens a room, the room air conditioner immediately turns on to strong mode, allowing the room to quickly reach a comfortable temperature;

◇ Air conditioning sleep mode: This protects guests' health while saving energy.

◇ Air conditioning forced mode: The hotel can set the minimum default operating temperature and intelligent temperature adjustment time frequency for the air conditioning thermostat. The thermostat can intelligently and humanely adjust the temperature curve, and finally operate at the default temperature to achieve intelligent energy saving.

◇ When the rented room is unoccupied, the air conditioner can maintain the temperature using constant temperature mode or circulation mode according to the hotel's settings:

◇ Air conditioning circulation mode: When the rented room is unoccupied, the air conditioner automatically turns on for 5 minutes every hour to maintain the room's air and appropriate temperature;

◇ Air conditioning constant temperature mode: When a rented VIP room is unoccupied, the air conditioner automatically maintains the room temperature within 2 degrees of deviation.

7. Compatible expansion functions

In order to meet the hotel industry's requirements for the consistency of the brand appearance of power switch boxes and switch panels, the system provides a variety of compatible interfaces:

◇ A CAN-485 gateway module can be provided, which is compatible with other manufacturers' 485 devices, such as 485 networked power switches and 485 thermostats;

◇ When it is not necessary to identify the RF card identity, the system also provides a compatible interface for identifying any power switch from other manufacturers.

IV. List of guest control equipment in standard hotel rooms
