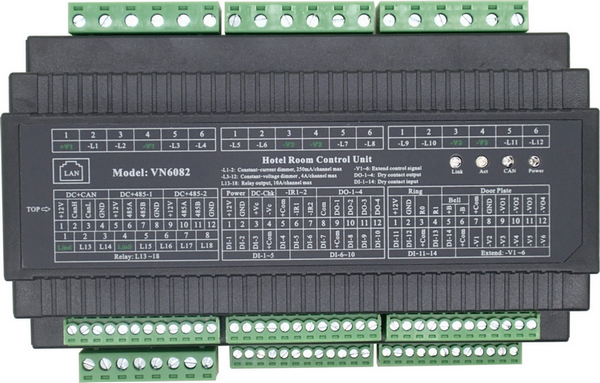

VN6082 LED constant voltage dimming master controller
VN6082 is a 14-channel LED dimming master controller with 2 channels of 250mA LED constant current dimming control output ports, 10 channels of LED constant voltage dimming control output ports, and 6 channels of 16A relay outputs.
Online Message
- Product Description
-
I. VN6082 Main Controller Product Features
- The RJ45 interface provides LAN/WAN communication gateway functions, responsible for communication data exchange and room identification;
- One CAN-Bus communication port can connect to CAN controllers, CAN switch panels, CAN temperature controllers, etc.;
- Two RS-485 communication ports can connect to 485 switch panels, 485 temperature controllers, 485 background music, etc.;
- Two-channel 250mA LED constant current dimming control output ports;
- Ten-channel LED constant voltage dimming control output ports;
- Six-channel 16A relay outputs;
- Four-channel dry contact control outputs;
- Six DC12V common positive control outputs;
- Two infrared control output ports.
II. VN6082 Main Controller Function Description
- Product Name: 8-Channel Relay Main Controller
- Product Model: VN 4020
- Product Dimensions: 162 x 88 x 59 mm (length x width x height) , 9P DIN slot width;
- One RJ45 port, supporting TCP/IP, HTTP communication protocols;
- One CAN -Bus communication port;
- Two RS-485 communication ports;
- Two-channel 250mA LED constant current dimming control output ports (bulbs, pendant lights, wall lights, spotlights, downlights);
- Ten-channel LED constant voltage dimming control output ports (DC24V/36V spotlights, downlights, light strips, bulbs);
- Six-channel 16A relay outputs: exhaust fans, night lights, air conditioning water valves, fan coil units;
- Four-channel dry contact control outputs: generally used for curtain and window screen dry contact control;
- Six-channel DC12V common positive control outputs: can be expanded to include two 16A surge protection relay expansion modules;
- Two-channel infrared control output ports: generally used for air conditioning infrared forwarding control;
- Fourteen dry contact inputs: dry contact switch panels, emergency calls, door magnets, infrared/microwave detectors, etc.;
- 6-in-1 entrance display panel output;
- Electronic doorbell output;
- DC12V low-voltage power supply switch input signal port;
- The VN6082 main controller can be remotely debugged and firmware upgraded;
III. VN6082 Main Controller Specifications
Power Input
+12V,GND
DC12V DC±0.5V
Network Port
RJ45 network interface
TCP/IP, UDP, HTTP communication protocols
CAN Port
CanH,CanL
CAN-Bus communication protocol
485-1 Port
485A, 485B
RS-485 communication protocol
485-2 Port
485A, 485B
RS-485 communication protocol
DC24V Positive Input
+V1
DC24V switching power supply positive input
DC24V Negative Input
-V1,-V2,-V3
DC24V switching power supply negative input
LED Constant Current Dimming Output
L1, L2
Total 2-channel 250mA PWM constant current dimming output
LED Constant Voltage Dimming Output
L3 ∽ L12
Total 10-channel PWM constant voltage dimming output (DC24V/36V)
Hot Wire Input
Lin4
AC220V hot wire input
Relay Output
L13,L14
AC220V hot wire output
Hot Wire Input
Lin5
AC220V hot wire input
Relay Output
L15 ∽ L18
AC220V hot wire output
DC12V Common Positive Output
+Com,-V1 ∽ 6
Expandable relays, dimming modules
Doorplate LED Common Positive Output
+Com,-VO1 ∽ 4
4-channel doorplate LED indicator DC12V common positive output:
Occupied, Cleaning, Please Wait, Do Not Disturb (default)
Power Detection
+Vc、-Vc
DC12V power detection
Dry Contact Input
+Com,DI-1 ∽1 4
14-channel dry contact DI input
Infrared control output
+Com,-IR1,-IR2
2-channel infrared control signal output
Doorbell button input
B0, B1
B0 is the positive pole of DC12V, and B1 is the negative pole GND
Electronic doorbell output
R0, R1
R0, R1 are dry contact outputs
LED indicator
Power
Power indicator
Can
CAN communication indicator
Link
Network communication connection indicator
Act
Network communication data transmission indicator

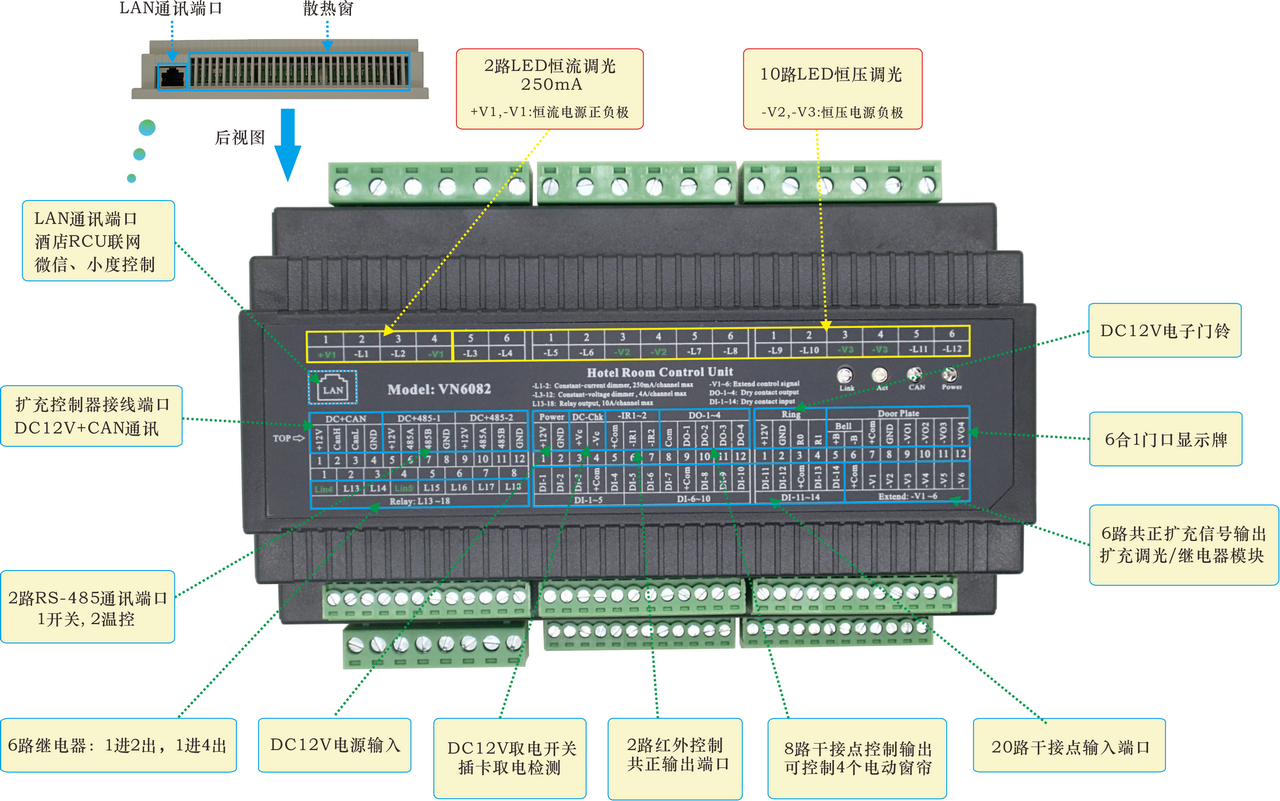

III. VN6082 Main Controller Function Port Description Diagram
