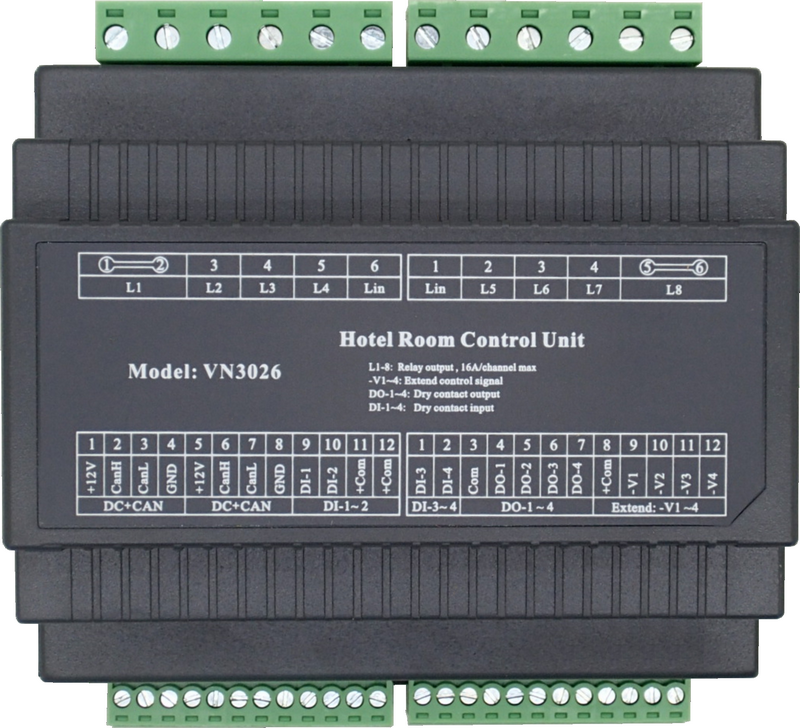

Product Name ： 8-Channel Relay Control Module

Product Model: VN3026

Function Description:

◇ The VN3026 controller provides 8-channel relay outputs, 4-way dry contact control outputs, and 6-way DC12V common positive outputs;

◇ 1 CAN-Bus communication port;

◇ 8-channel 16A surge-protected relay outputs;

◇ 4-way DI dry contact switch input;

◇ 4-way DO dry contact control output;

◇ 6-way DC12V common positive extended control signal output;

Technical Parameters:

◇ DC12V power input port;

◇ 1 CAN_Bus communication port;

◇ 8-channel 16A surge-protected relay outputs;

◇ 4-way DI dry contact switch input;

◇ 4-way DO dry contact control output;

◇ 6-way DC12V common positive extended control signal output: can be expanded to connect relay modules;

Installation Location: DIN standard rail mounting mode, installed in the RCU box;

Dimensions: 107x88x59mm (length x width x height), 6P DIN slot width.

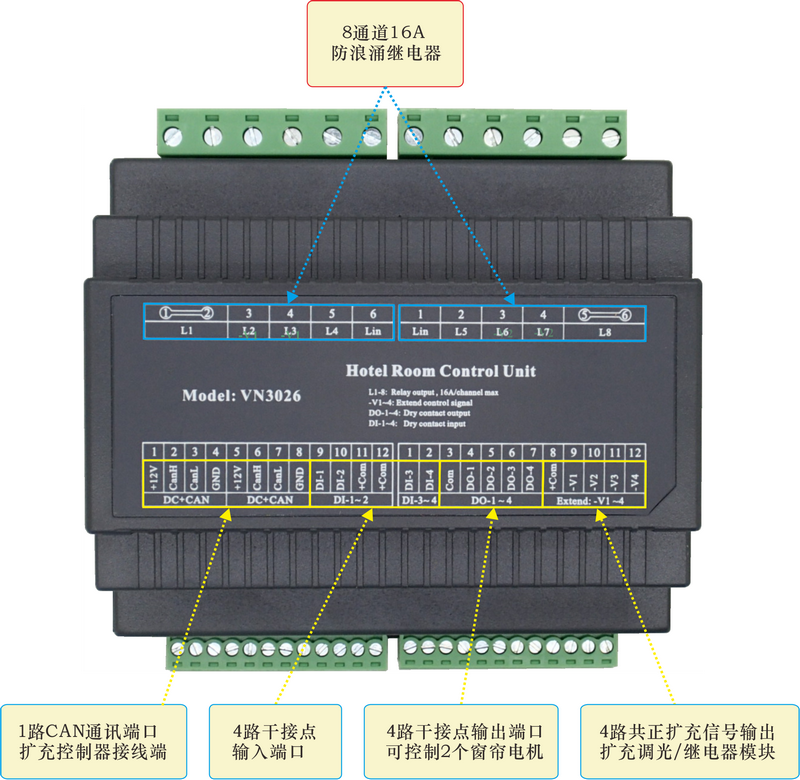

VN3026 Controller Port Function Description:
