I. VNET-400T Gateway Product Features

• TCP-CAN/485 communication protocol gateway
• Suitable for CAN relay switch panel series
• Suitable for CAN dimming switch panel series
• Suitable for 485 high-voltage switch panel series
• RJ45 interface provides LAN/WAN communication ports
• CAN-Bus port can connect CAN relay switch panel and CAN dimming switch panel;
• RS-485 communication port can connect 485 switch panel, temperature controller panel, etc.;

  II. VNET-400T Gateway Function Description

• Product Name ： TCP-CAN/485 Gateway
• Product Model: VNET-400T
• Product Dimensions: 72 x 88 x 59 mm (length x width x height) , 4PDIN card slot width;
• 1 RJ45 port, supporting TCP/IP, HTTP communication protocols;
• 1 CAN -Bus Communication port;
• 1 RS-485 communication port;
• 1 DC12V Power switch Detection port;
• 4 Channel DC12V common positive control signal expansion port, Usually used for connecting door display boards,
• also can be used for expanding dimming /relay expansion modules;
• 2 Channel IR infrared control output port , usually used for air conditioning infrared forwarding control ；
• The gateway can be remotely debugged and firmware upgraded ；
• VNET 4 The powerful functions of the 00T gateway ensure that the system intelligence remains excellent ；
• Vinin cloud platform, providing WeChat control, APP control, voice control, etc. ；;
• WEB background control software, can remotely monitor guest room equipment ；
• Vinin SaaS system, statistical analysis of hotel equipment operation status, preventing lost orders.

III. VNET-400T Gateway Specifications

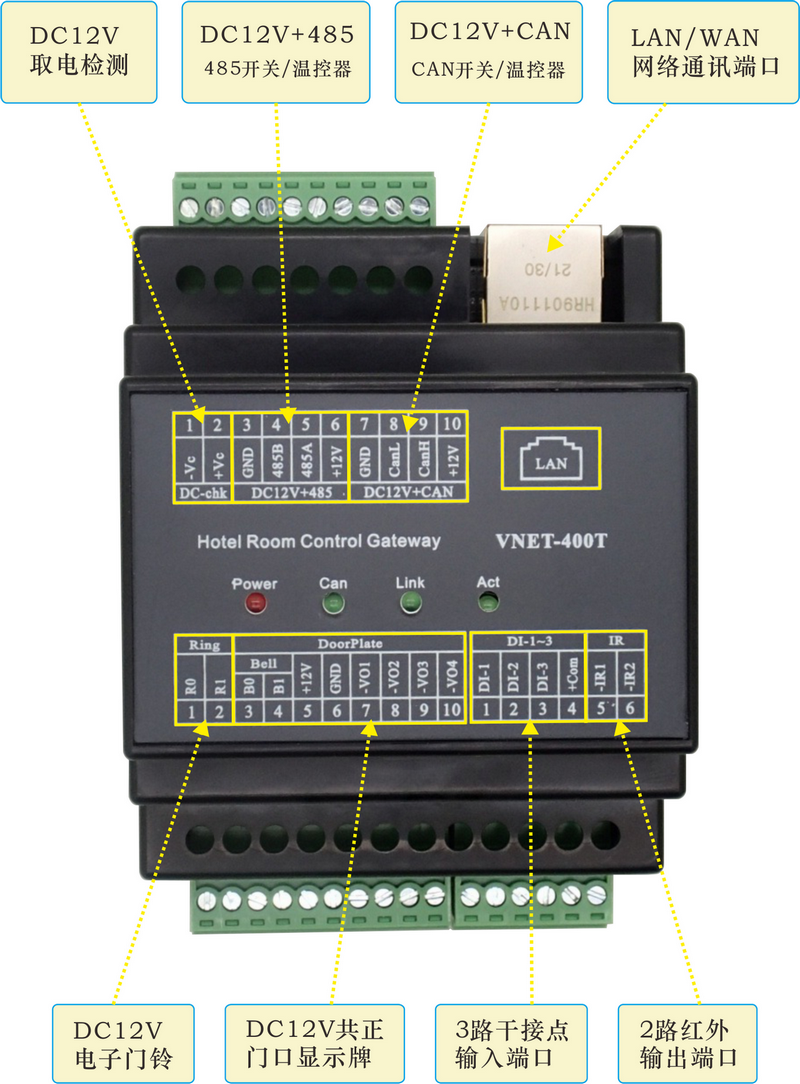

IV. VNET-400T Gateway Function Description Diagram
